Medical Ozone Devices

TURKOZONE Blue S

Turkey's first domestic Medical Ozone Equipment

Request a Quote

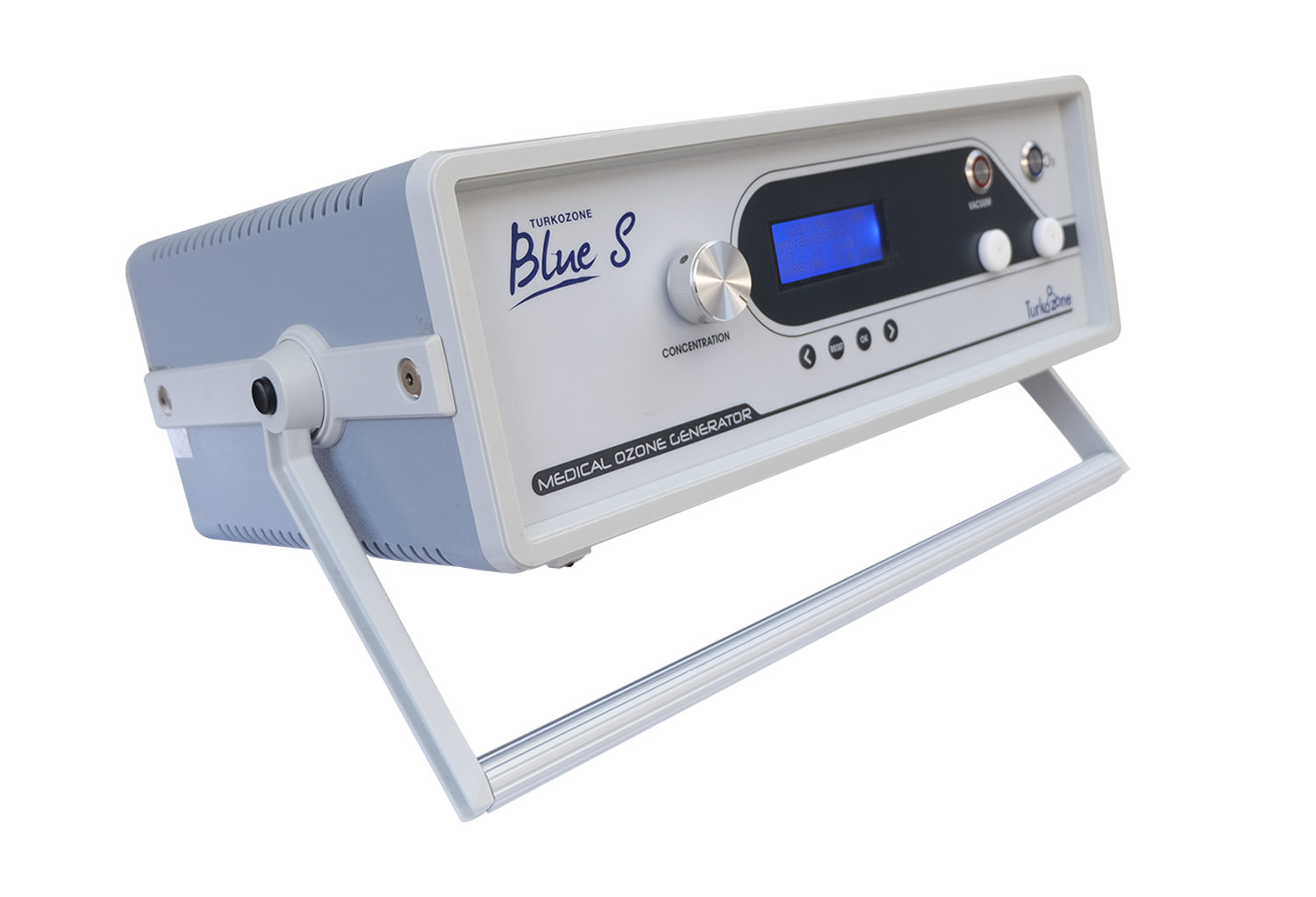

TURKOZONE Blue S
ProfessionalUse focus
SalesOzon Sağlık portfolio
ServiceTechnical support
SupplyConsumable support
Use Cases

Clinical and mobile use options for Blue S

Blue S is positioned for professional use with a tabletop device structure, technical support and package options.

In-clinic useA compatible trolley and alarmed ozone sensor support positioning and monitoring in the clinical environment.
Mobile useAn ergonomic case setup with the device, cylinder and connections ready for mobile workflows.
Technical service supportInstallation, use and technical service processes are supported by Ozon Sağlık.
Technical Info

Technical Specifications

StructurePortable, desktop easy to use
Screen4x20 character LCD display
MenuEnglish
Mode of OperationNormobaric infusion technique The patient is not connected to the device during treatment
Concentration RangeReliable precise dosing 0 - 1 µg / ml 0.1 µg / ml 1 - 80 µg / ml 1 µg / ml
Photometric MeasurementContinuous ozone measurement with automatic calibration is displayed on the digital display.
Volume Flow8.2 lt / min depending on the concentration range
Working Pressure Inside the Device2.6 bar
CatalystCatalyst that converts unused ozone gas into oxygen after the process
AbsorbentPowerful vacuum motor, 0.5 ml / min
Vacuum Value780 mbar
Medical Ozone Inlet Pressure1 - 10 bar
Applicable TreatmentsMajor autohemotherapy Minor autohemotherapy Local injections Bag therapy Rectal insufflation Ozonated water Serum physiological
Dimensions150 x 438 x 275 mm
Weight6,36 kg
Electrical Data200-240 V AC 50Hz-60Hz 50 WATT
Input Voltage100-240 V
Operating temperature10 - 40 °C
Storage Temperature-10 - 60 °C
Optimum Ozone Temperature22 - 27 °C
Working Humidity% 35 - 80 RH
CertificationsCE 1984 ISO 13485:2016
Warranty2 years
Product information on this page is prepared for professional use and institutional procurement processes.
Advantage Packages

Package options for your Blue S usage model

You can evaluate Blue S with advantage package options designed for different usage scenarios. The clinical package focuses on in-clinic usability with a device-specific trolley and alarmed ozone sensor. The mobile-use package is designed around the device’s dedicated bag and cylinder setup, allowing ergonomic operation by connecting the device directly to power without removing it from the bag.

Blue S Clinical Package
Clinical use

Blue S Clinical Package

An advantage package designed for a more organized, accessible and safe in-clinic usage flow.

  • Device-specific wheeled trolley
  • Alarmed ozone sensor for ambient ozone level monitoring
  • Easy positioning and usage ergonomics within the clinic
  • Advantage quotation structure as a package
Request a Quote
Blue S Mobile Use Package
Mobile use

Blue S Mobile Use Package

An advantage package designed for fast setup, easy transport and practical operation in mobile-use scenarios.

  • Ready-to-use setup inside the device’s own bag and cylinder configuration
  • Ergonomic package structure with organized connections
  • Power-and-run convenience without removing the device from the bag
  • Practical transport and setup for mobile use
Request a Quote
Quote

Would you like to request a quotation for this product?

Contact us via WhatsApp with the product name; our team will respond with purchasing and delivery details.

Request a Quote
